Flexible Duct Connector
Time:2009/6/26 11:08:01
Product Brief Introduction

        We manufacture very strong and fully Flexible Duct connectors, which are widely used in Air Conditioning Systems for Commercial, Industrial and Residential Applications.

      Isolation of sound and vibration from the source, double lock seam  duct flexible connector fabric is used which is fixed to galvanized steel sheet metal on either side. One end of the  galvanized steel sheet  metal is  anchored  with  the equipment and the other end is anchored with the duct work. It is recommended that larger fabric widths should be used for better results in vibration isolation thereby preventing metal to metal contact.

      "Ampelair" flexible duct connectors are a practical and economical method to connect air-conditioning equipment with air pipes , applied between   the air ducts  to air ducts or between air-conditioning equipment and air ducts , providing a wear-resistant flexible connectivity to eliminate vibration and noise  effect.

     "Ampelair" duct connector is formed by "Ampelair" fireproof and punching sheet metal  through  fold repression, gastightness is excellent,punching  sheet metal is made into the shape required easily, the installation is fast and it can replace  traditional  canvas in order to save hours of work .It is a new type of connector which connects air pipes  with the ventilation equipment.

Advantages of Ampelair flexible duct connector

1. quick and Economical
2. strong Air Tight Lock Seams
3. unmatched durability and Strength
4. available in various widths of Metal and Fabric
5. fire rated and High Temp Resistant Fabric is available for special applications
6. standard roll length is available in 25meters and 50 meters

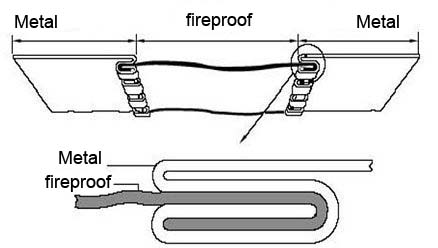

Structure illustration



Specification parameter



Technical parameters

Name:Vinylon  fireproof fabric flexible duct connector
Model: AFJ-80C
Temperature: -30 ℃ ~ +80 ℃
Tensile strength (N): 2300 × 1860
Anti-tear strength (N): 288.5 × 246.6
Length: 25M, 50M/Roll
Other specifications can be customized  according to requirements

Name:Vinylon  fireproof fabric flexible duct connector
Model: AFJ-120C
Temperature: -30 ℃ ~ +120 ℃
Tensile strength (N): 3000 × 2090
Anti-tear strength (N): 288.5 × 246.6

Length: 25M, 50M/Roll
Other specifications can be customized  according to requirements


Name:Fiberglass fireproof fabric flexible duct connector
Model: AFJ-280C
Temperature: -30 ℃ ~ +280 ℃
Tensile strength (N): 2300 × 1860

Anti-tear strength (N): 253.6 × 180.5
Length: 25M, 50M/Roll
Other specifications can be customized  according to requirements
